Built-in extractor hood AT1349XStainless steel

- Telescopic hood
With its retractable drawer, this hood combines efficiency and discretion.

- Power
Allows the total evacuation of cooking fumes.

- Cartridge filters in aluminium
Once the aluminium filters is saturated, it can be easily removed and cleaned in your dishwasher.

Main Specifications
Type of hoods:
Telescopic hood
Output air extraction (m3/h):
384
Width (cm):
90
Control panel
Type of control:
Mechanical
Boost position:
No
Lighting
Number of lights:
2
Light position:
Rear centred
Type of bulb:
<FR value not found>
Lighting power (W):
3
Performance
Number of speed positions:
3
Acoustic power level (recycling) (dBA):
69
Max recycling air extraction (m3/h):
208
Minimum evacuation sound level (dBA):
60
Max evacuation sound level (dBA):
71
Filtering
Number of filters:
2
No-return airflow clap:
No
Accessories:
Charcoal filter
Dimensions
Dimensions of product HxWxD (mm) :
180X900X300

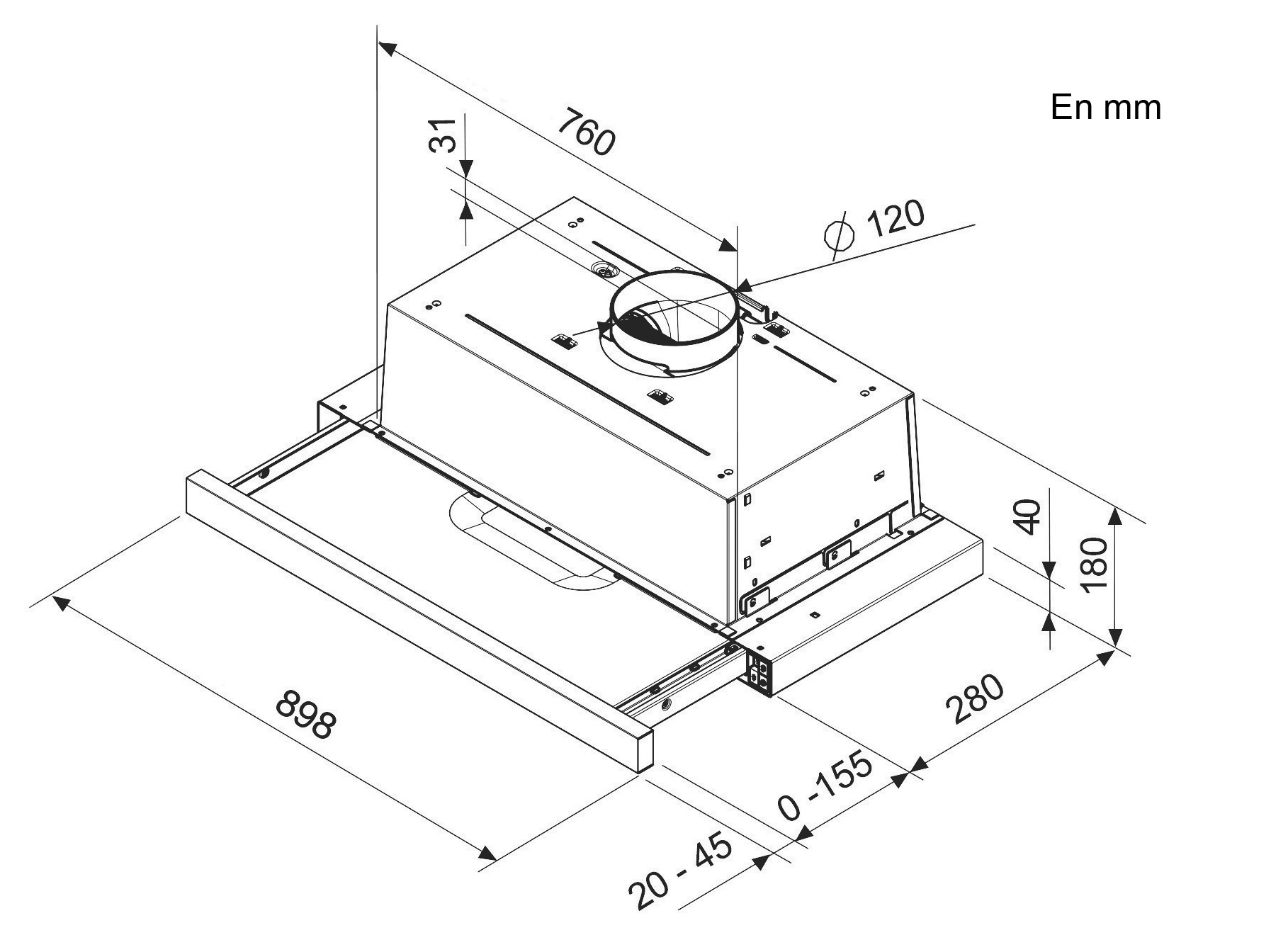

Built in dimensions HxWxD(mm):
171X760 X257
Dimensions of the packed product HxWxD (mm):
260X940X330
Gross weight (kg):
8.46
Net weight (kg):
08
Connections
Voltage (V):
220-240
Frequency (Hz):
50/60
Current (A):
10
Connection rating (W):
136
